Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: float switch
  • Model Number: float switch
  • material: stainless steel
  • raw material: sus304/sus316
  • color: stainless steel
  • size: small size
  • package: carton
  • application: level sensor
  • company profile: manufacturer
  • design: own design
  • certificate: ROHS /ISO9001
  • installation: easy

Packaging & Delivery

Packaging Details bags and cartons
Delivery Time Shipped in 2 days after payment

Stainless steel electronic level sensor level switch float switch

1.long working life 2.stable performance 3.easy mounting 4.multi points control



 Specifications




Operating principle:

Liquid level sensors mainly consists of magnetic Reed switch and floater . There is a  magnetic material in the floater that will trigger the magnetic Reed switch as the level of the liquid tested moves up and down , and thus detecting the position of the liquid level.



Characteristic:

Liquid level sensors used imported components and is provided with characteristics such as compact size ,simple working principle, highly reliable and inexpensive.Floating balls with different materials and specifications are available for selection .Electrical parameters can be changed in accordance with client's requirement,and special specification can also be customized.









ISO9001 Certificated







Application field :

This product can be used in liquid level control for watering machine , water heater , solar energy ,air conditioning , moisturizing machine , bathroom utensil , vending machine ,oil tank , water tower and chemical industrial ,etc. It will be widely applied in motor vehices ,industrial equipment , agricultural equipment and household electrical appliances in the Future.

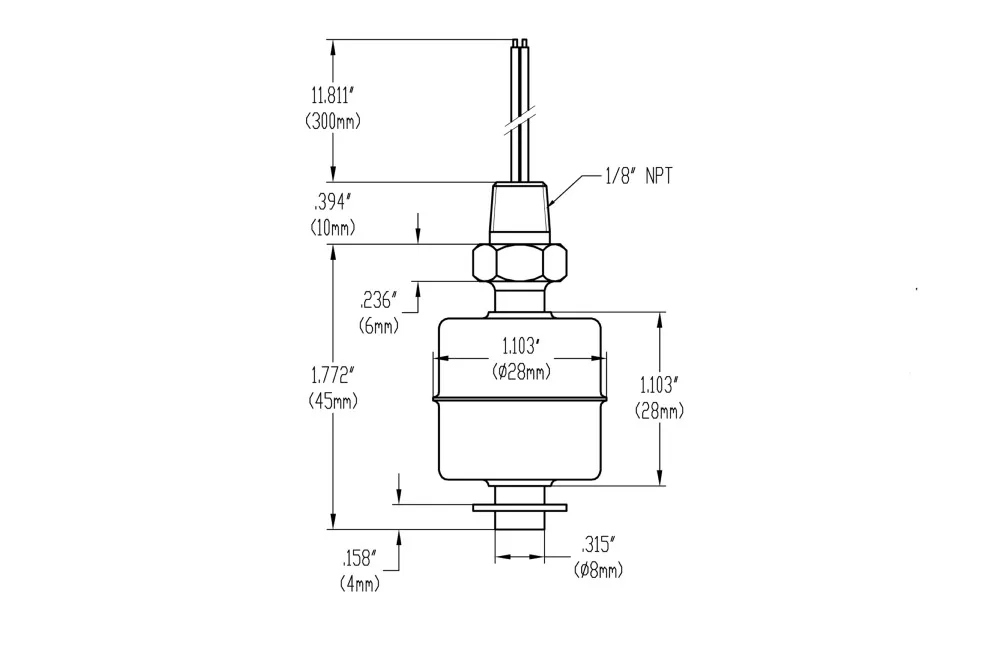

Specifications

MR1045-S

Case

SUS304

Nut

SUS304

Floater

SUS304 / SUS316

E Ring

SUS304

Cable

UL 1015  22AWG / 24AWG

Filler

Ethoxyline (ROHS)

Used medium

Water,Oil,Chemical liquid



Contact Type

Normally Open

Normally Closed

Normally Open High Voltage

Normally Open High Voltage

Max Contact Rating

10W

50W

Max Switching Voltage

100V (DC/AC)

300VAC / 350VDC

Max Switching Current

0.5A

DC0.7A / AC0.5A

Max Breakdown Voltage

150VDC

                 500VDC



Application



Water fountain,air cindition,humidifier,bathroom equipment,sale machine,oil tank and chemical liquid level control.It will be widely applied in motor vehicles,industrial equipment,agricultural equipment and household appliances in the future.

Package

       Standard plastic bags and cartons, also we can provide customized design for all kinds package.



    Production Line

       Our factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.
